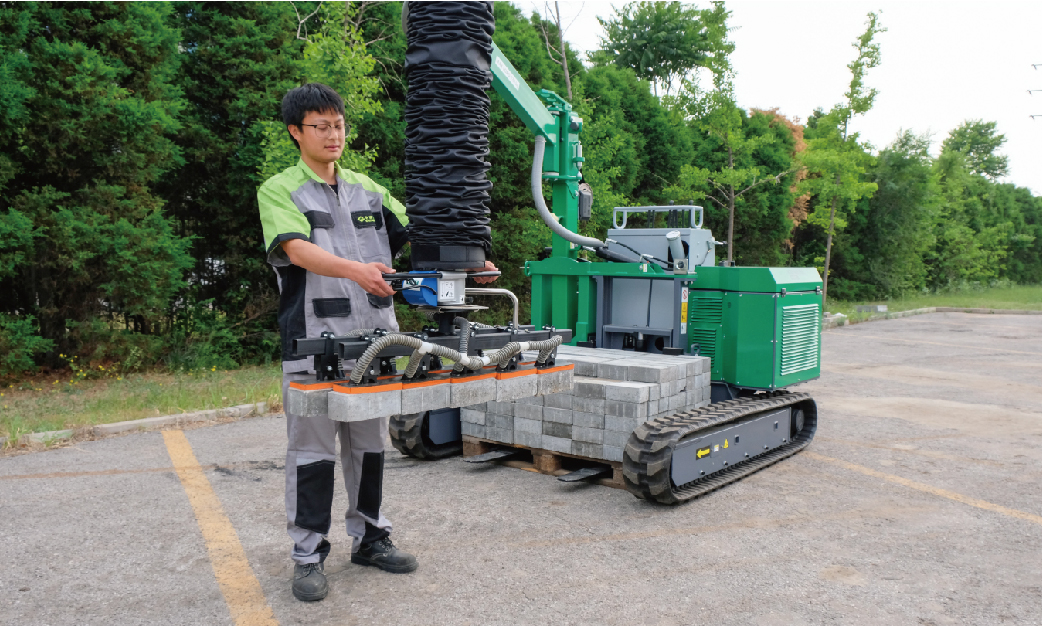

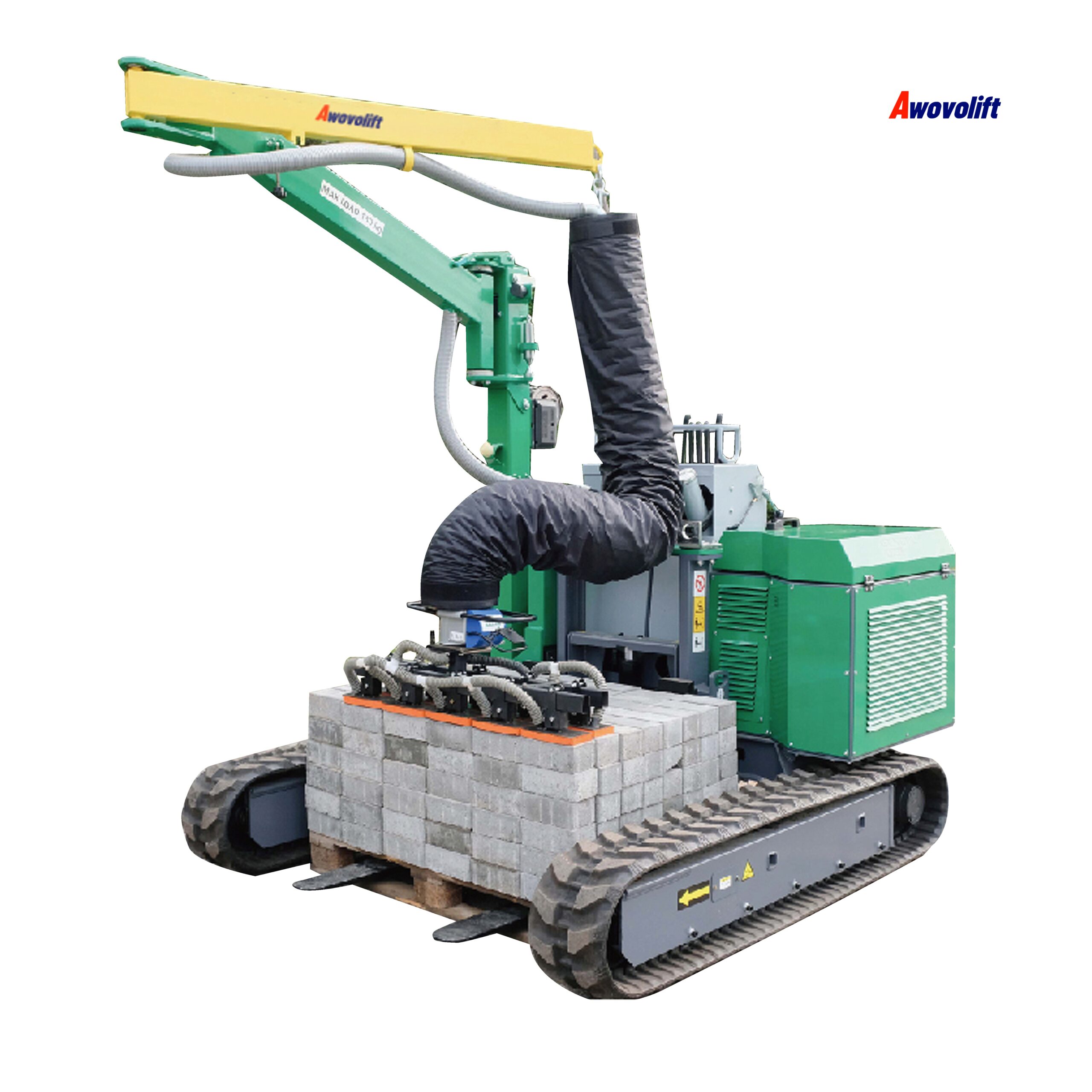

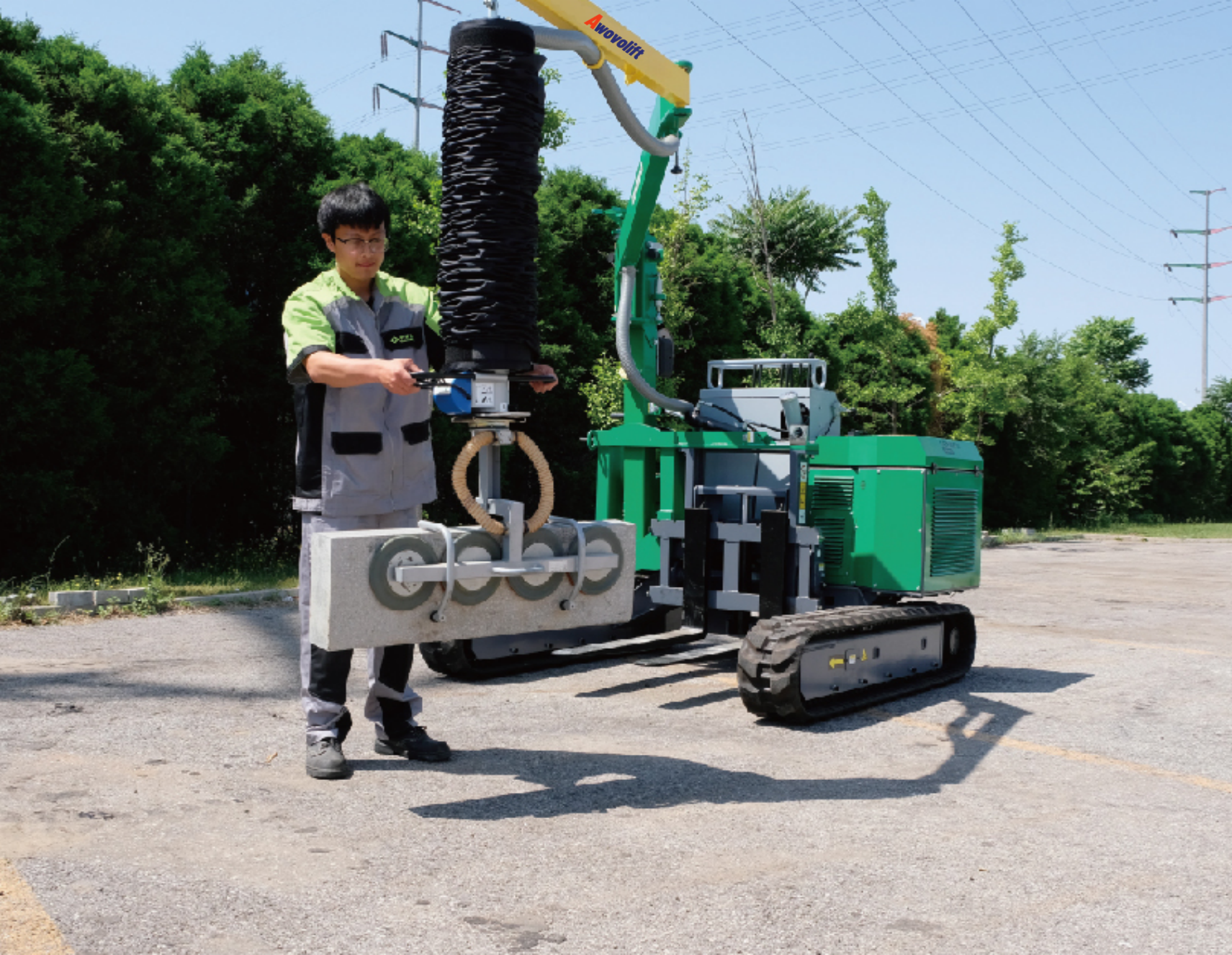

The Crawler Vacuum-Pallet CVP 130 is specifically designed for efficient concrete or natural stone elements laying operations.

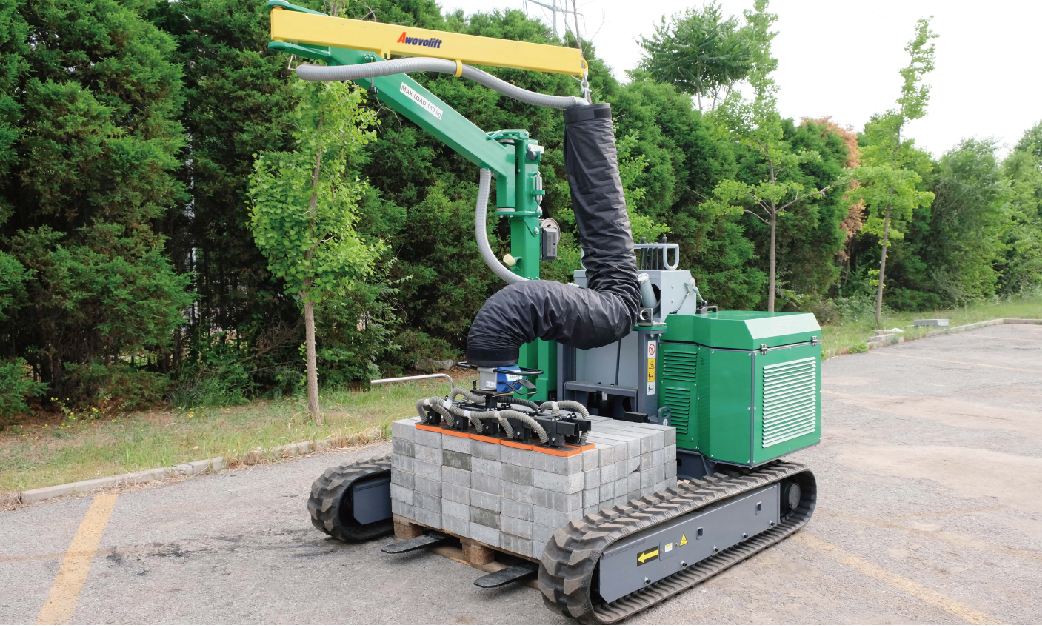

The versatile machine is able to carry the pallet (up to 1,600 kg in weight, 1,320 mm in width) and utilizes integrated vacuum tube lifting technology to install heavy concrete or natural stone elements weighing up to 130 kg (240 kg as an option).
With this machine on various construction sites, it can eliminate the requirement for wheel loaders to supply paver or kerb bundles. The compact design enables the machine to be transported on a passenger car trailer, the low-bed trailer is not required.

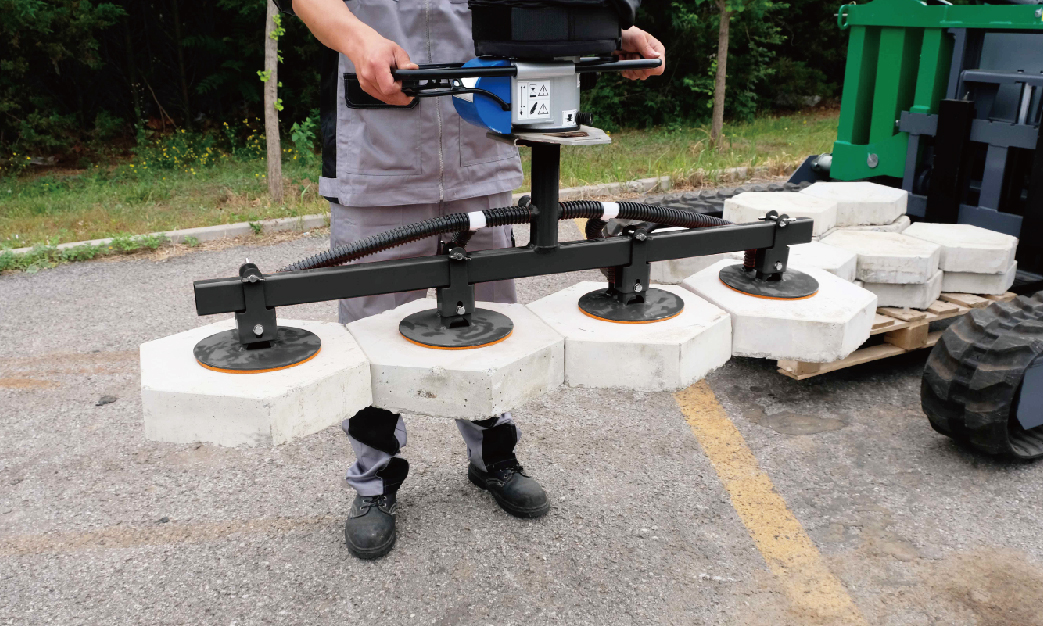

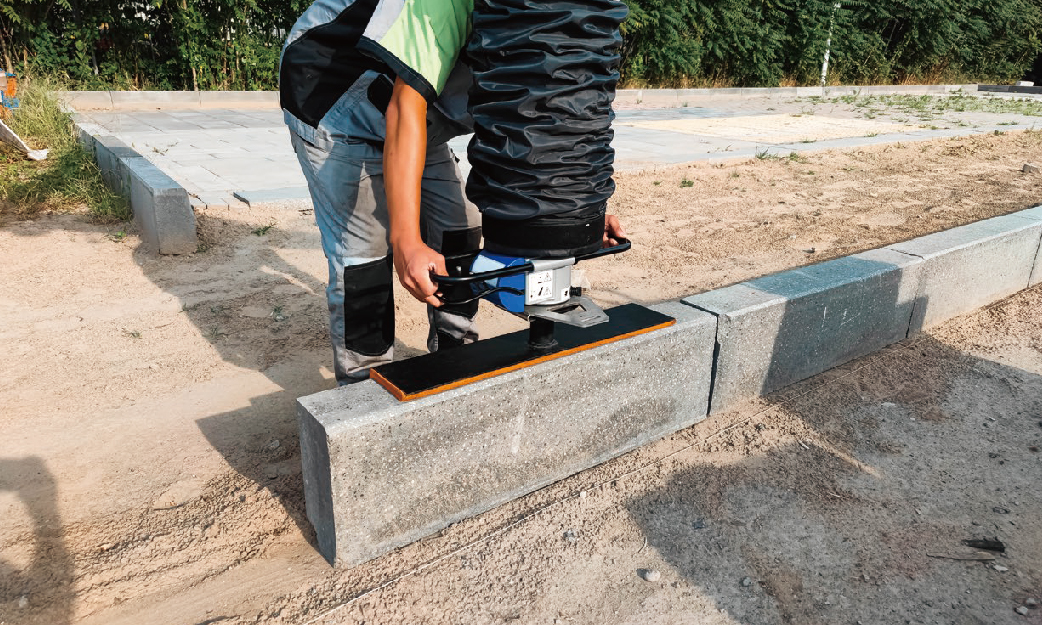

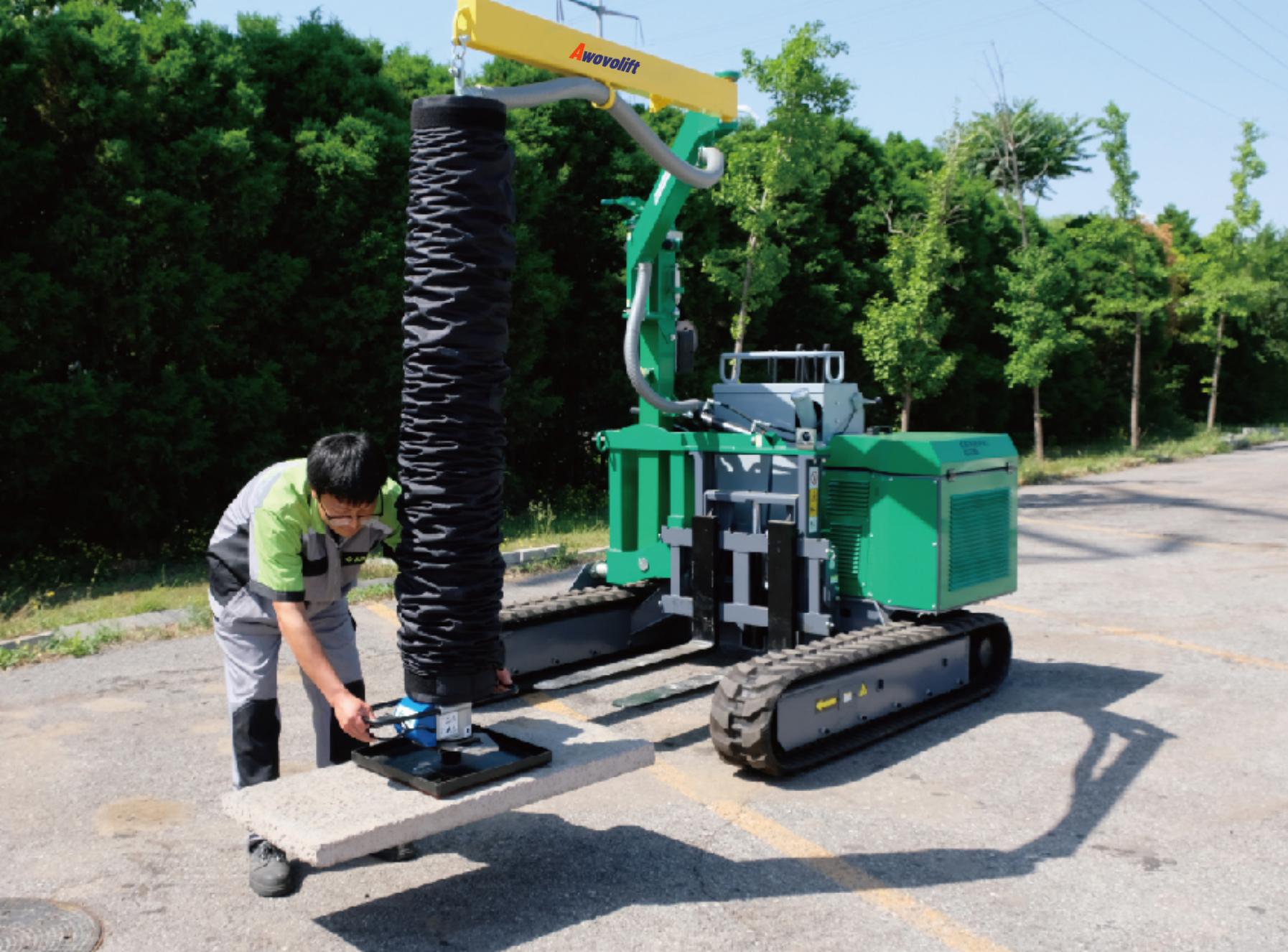

- Featherweight, precise and cost-effective laying of concrete components, kerbs, natural stone slabs, large cobbles, gutter slabs, retaining wall stones, and more.

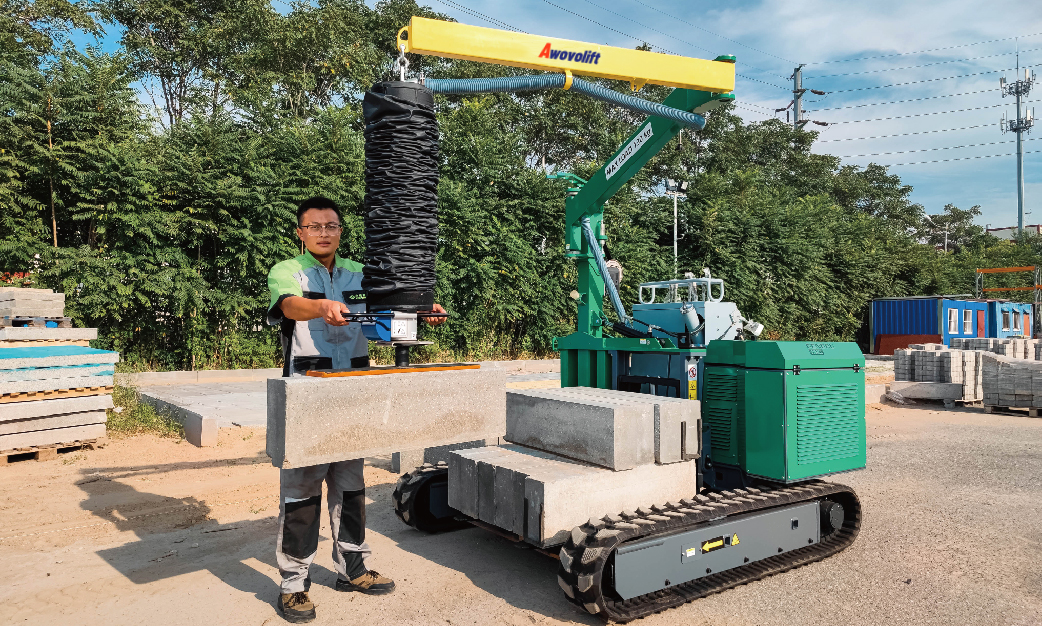

- Transporting pallets weighing up to 1,600 kg and efficiently laying kerbs and other concrete or natural stone elements weighing up to 130 kg.
- Achieving hydraulic balance for the mast requires minimal effort.
- The mast can be easily folded by a single operator within minutes. It requires minimal set-up time and boasts a compact design, making it highly portable for transportation and convenient for daily storage at job sites.
- The foldable boom arm enables the seamless laying of slabs and other elements in building sites with limited space, such as alongside walls or tree rows.
- The rubber track undercarriageenables smooth manoeuvrabilityregardless of the rough terrain.

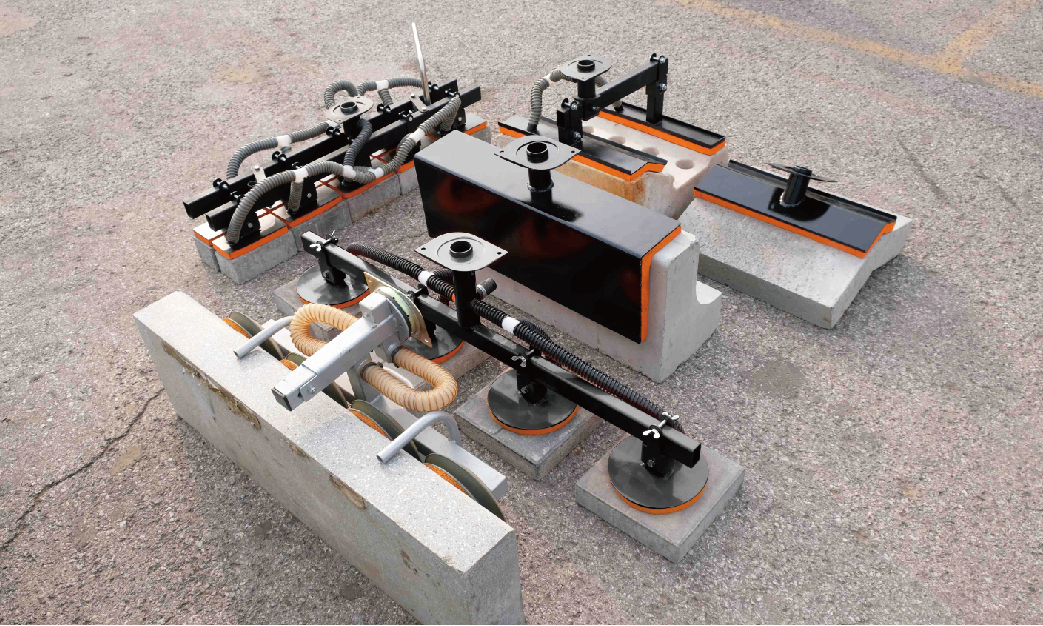

- The suction pads can be replaced effortlessly using the quick-change system.
- The machine’s compact and lightweight design makes transportation hassle-free and effortless.
