Awovolift Air Power Tube Vacuum Lifter Easy Lift Assist Arm Lifting Box Barrel Bag Robot Vacuum for Logistics Transport System

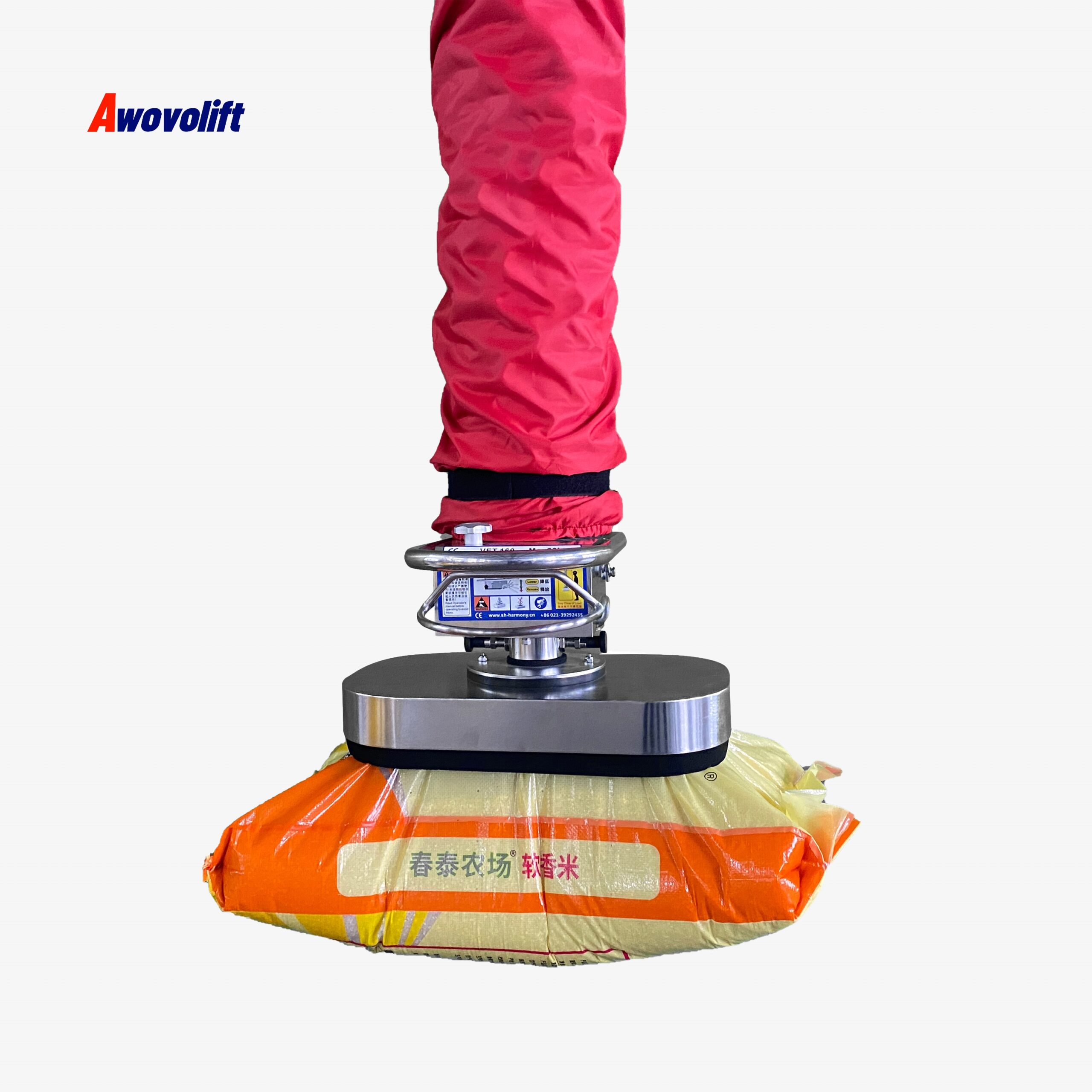

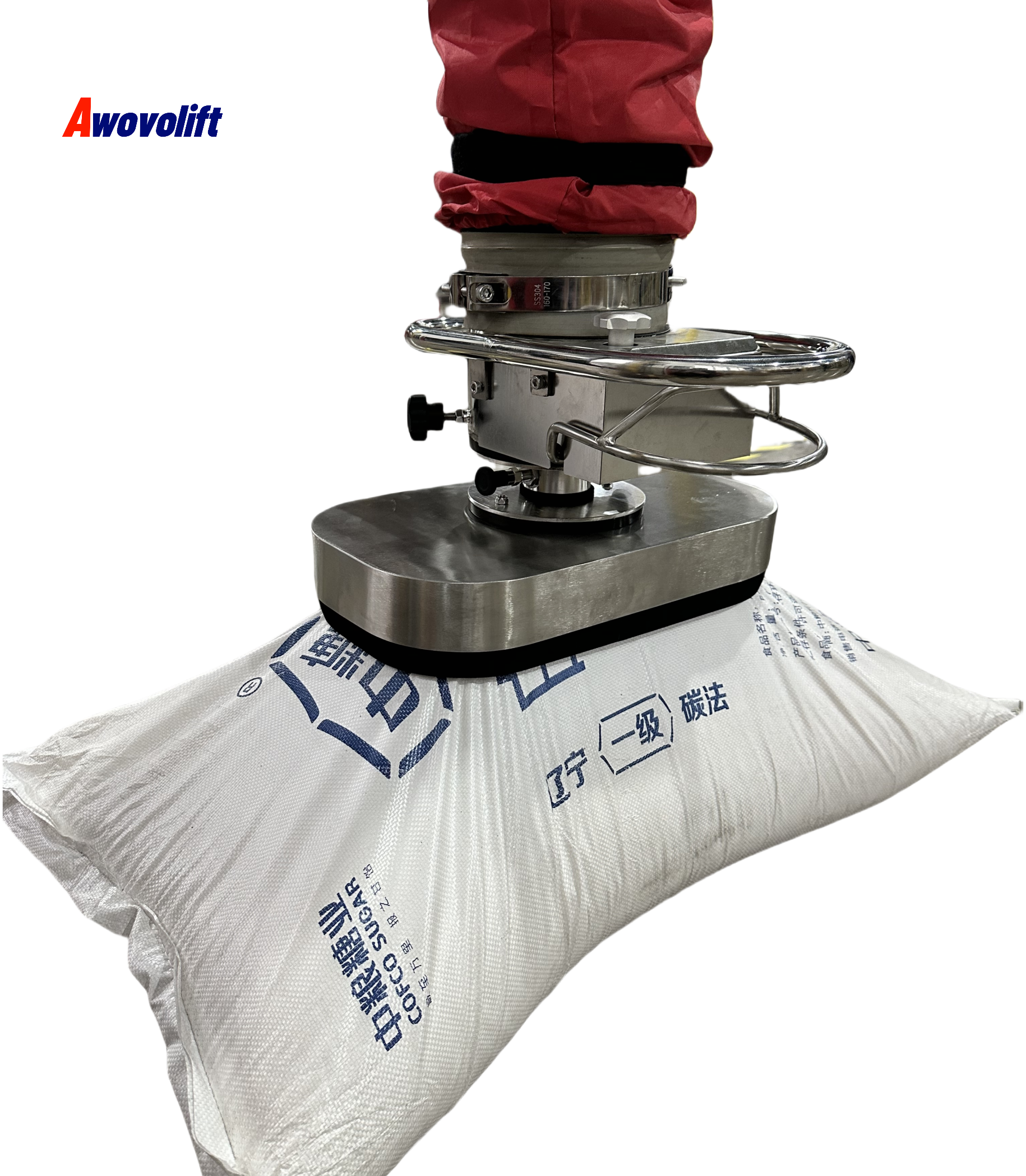

  • Vacuum Tube Lifters – A Versatile Load Handling System

    Vacuum tube lifters are a unique lifting aid designed for repetitive handling ofmaterials or loads that are breakable or fragile (loads not suited for grippers orgrabbing) such as concrete blocks, bags, or cardboard boxes. A tube liftsystem increases productivity while offering an ergonomic solution to materialhandling needs.

    These systems hold, lift, and lower the load all with a singleoperator control, and require minimal operator training. The use of inter-changeable attachments allows for a variety of shaped and sized loads to behandled without the need for multiple systems.





Share To

  • Product Parameter

Vacuum Lift Tube
Assembly Set Number
Dimensions Load
Liftcm Extended HeightHE
cm
Compressed HeightHC
cm
Non-Porous Loads
kg
Semi-Porous Loads
kg
Porous Loads
kg
AL-VT80-A 167 280 112 23 16 14
AL-VT100-A 167 275 108 43 32 23
AL-VT120-A 167 277 110 64 48 32
AL-VT140 167 277 110 84 64 43
AL-VT160 167 282 115 102 77 52
AL-VT180 167 287 120 129 98 66
AL-VT200 167 287 120 161 120 80
AL-VT230 167 287 140 214 160 107
AL-VT250 167 292 124 230 175 125
AL-VT300 167 292 124 250 195 140

Power System

AC Power

Loading

Max 200KG

Sucker Number

1-4 SET

Lift Height

1800/2500,1700/2400,1500/2200

Pump

4Kw,5.5Kw
